大家好，繼廣受好評的的AYON CD-1熱賣後，我們特別又為各位引進了她的綜合擴大機"SPIRIT"，預計這星期到貨，相關評論過幾天會PO上來喔。

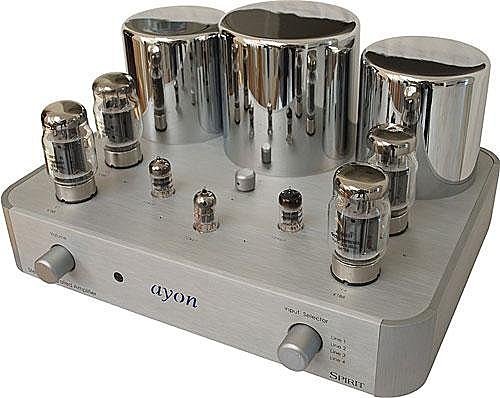

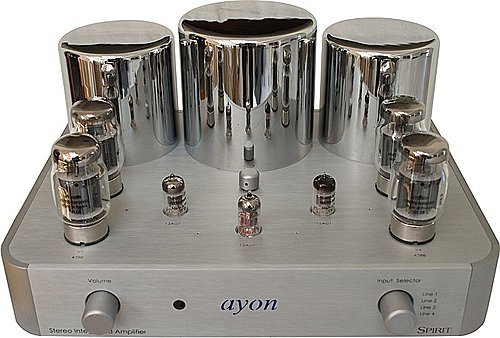

  • Full-featured vacuum tube stereo integrated amplifier
  • Switch able between Pentode and Triode mode

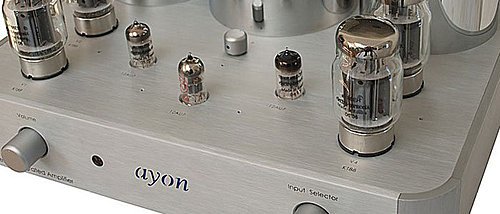

  • KT88 power output tubes
  • Timer warm up circuit for all tubes, extends tube life
  • High current filament-regulator for pre and driver tubes
  • Choke filtered power supply
  • 0dB negative feedback
  • Power transformer is encased, excellent damped and RFI/EMI shielded
  • High performance output transformer
  • All transformers are sealed with an anti-resonance compound material
  • Selected, premium quality passive components used in all applications
  • High speed capacitors
  • DC-Power filter
  • MKP capacitors
  • Ceramic tube sockets
  • Wide range bias adjustment for other octal based output tubes
  • Shortest possible signal paths
  • Teflon isolated - internal wiring
  • Synergistic internal signal cable
  • Central one-point star earth grounding

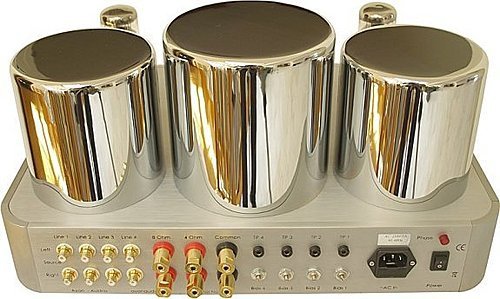

  • External static bias adjustment - rear panel
  • Fully hand assembled to insure the highest level of craftsmanship
  • Alu-brushed anodized anti-vibration-resonance and non-magnetic chassis
  • Backlit "ayon" logo - front panel

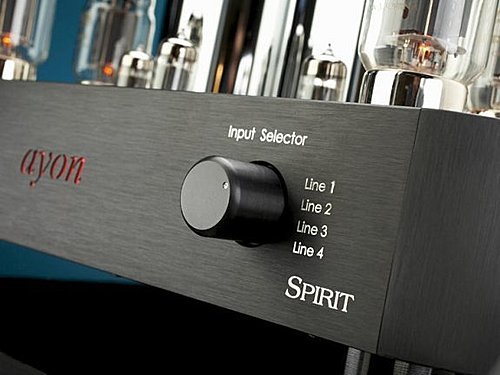

  • 4 line inputs
  • AC phase polarity control indicator
  • Gold-plated heavy duty binding posts and input jacks

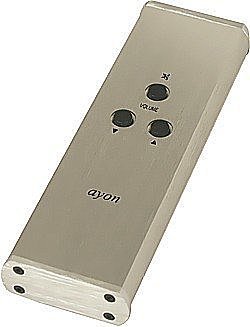

  • Metal remote commander

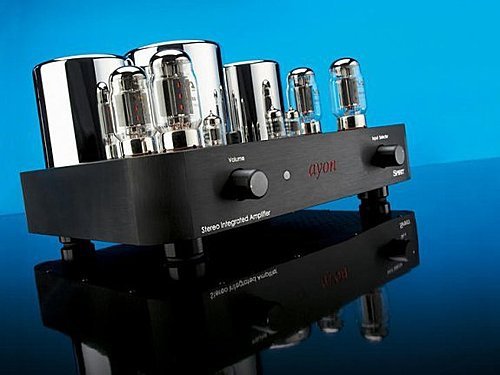

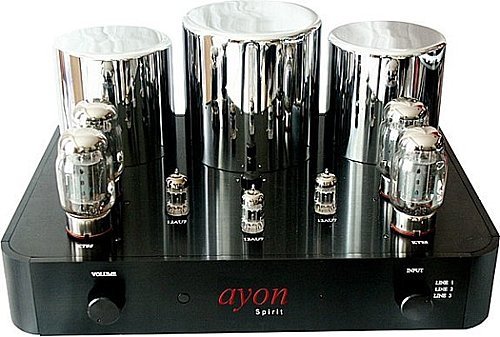

  • Chassis finish: silver / chrome or Black / chrome








Specifications




































































AmplifierAyon Spirit
Class of OperationTriode or Pentode mode
Tube Complement4x KT88, 3x 12AU7 EH
Load Impedance4 & 8 Ohms
Bandwidth15Hz-60kHz
Output Power / Pentode mode 2 x 50 Watt
Output Power / Triode mode 2 x 30 Watt
Peak Output Power2 x 70 Watt
Nominal voltage gain40dB
Frequency Response27 Hz - 42 kHz/ +/- 0.5 dB
Input sensitivity for full power1 V
Input Impedance at 1 kHz100K Ohm
S/N ratio at full power80 dB
Hum0,003 V
NFB 0dB
Volume ControlPotentiometer
Remote ControlYes
Inputs4xLine
Power Consumption145 Watt
Dimensions (WxDxH) cm46x34x26 cm
Weight29 kg
Shipping weight33kg



這兩天，小弟可能先不上來PO文了，因為，擴大機已經到貨了，三十公斤的紮實用料，精緻的外觀，光抱起來，心頭就是非常的踏實（腰有點酸倒是真的啦），目前正按照原廠建議，分批在RUNＩＮ中，這三小時聽下來，聲音真的好棒喔，迷人的五級管（可切換三級），誘人的藍色燈光，好甜美的聲音喔........
